Part 1: Creating the Micro Frontend Component
1. Set Up Your Project
Create a new directory for your project and navigate into it:
mkdir my-micro-frontend
cd my-micro-frontend
Initialize a new Node.js project:
npm init -y
2. Install Dependencies
Install React, ReactDOM, and any other you would like to use.
npm install react react-dom
Install development dependencies for Webpack and Babel:
npm install --save-dev webpack webpack-cli babel-loader @babel/core @babel/preset-env @babel/preset-react
3. Set Up Your Project Structure
Create the following directory structure:
my-micro-frontend/
├── src/
│ └── MyComponent.jsx
├── dist/
├── package.json
├── webpack.config.js
4. Create Your Component
In src/MyComponent.jsx
, add your actual component code):
5. Configure Webpack
In webpack.config.js
, add the following configuration:
const path = require('path');
module.exports = {
entry: './src/MyComponent.jsx',
output: {
filename: 'my-component-bundle.js',
path: path.resolve(__dirname, 'dist'),
libraryTarget: 'window',
library: 'MyMicroFrontend',
},
module: {
rules: [
{
test: /\.jsx?$/,
exclude: /node_modules/,
use: {
loader: 'babel-loader',
options: {
presets: ['@babel/preset-env', '@babel/preset-react'],
},
},
},
],
},
resolve: {
extensions: ['.js', '.jsx'],
},
externals: {
react: 'React',
'react-dom': 'ReactDOM',
},
};
6. Build the Bundle
Run the following commands to build the bundle:
npm install
npm run webpack --config webpack.config.js
This will generate a
my-component-bundle.js
file in the dist
directory.Part 2: Uploading and Configuring the Micro Frontend
1. Upload the Bundle
Upload the my-component-bundle.js
file to a static file server, CDN, or GitHub Pages. Ensure you get a public URL for the file.

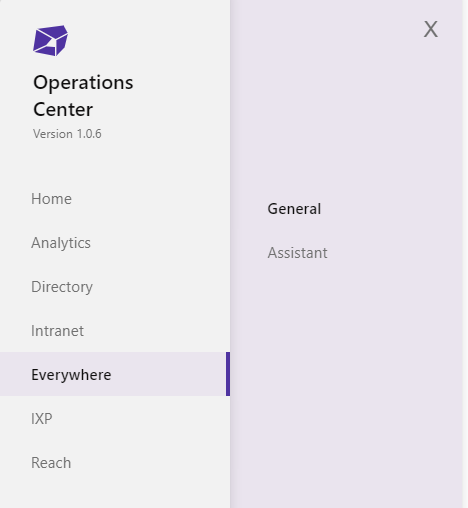

2. Access the Operations Center
Navigate to the Operations Center.
3. Navigate to the Correct Section
Go to Everywhere > General
.

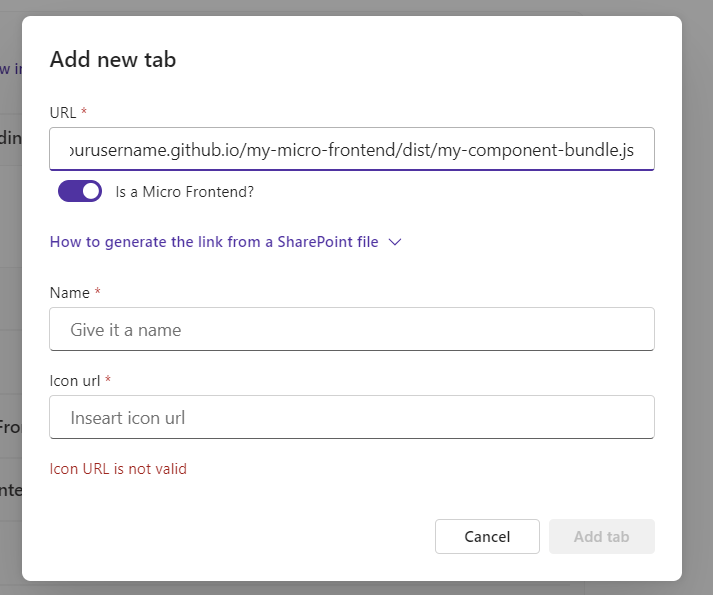

4. Create or Edit a Tab
Create a new tab or edit an existing one.
5. Add the Bundle URL
Add the URL where you uploaded the bundle file in the URL field.
6. Mark as Microfrontend
Toggle the switch next to the URL field to indicate that this is a microfrontend.
