Installing and Adding the Directory web parts

Prerequisites

• An installed and configured Directory Premium subscription
• SharePoint Online Tenant
• Advanced Profile Features needs to be enabled (Settings -> General)
  Note: After Advanced Profile Features are activated, at least one daily full audit must be completed. (Scheduled time can be configured from Settings -> General).


• The LiveTiles Directory SharePoint web part package:


  Download the Web Part Package

Installing the Profile, Live Directory, and Org Chart Web Parts

The following steps will add the Directory SharePoint Web Part package to your Organization.

1   Navigate to the SharePoint Admin Center, e.g. https://contoso-admin.sharepoint.com/

2   From the SharePoint Admin Center side-bar, navigate to 'apps' -> 'App Catalog' -> 'Apps for SharePoint'

3   Click '+ New' to add a new app, 'Choose Files' and locate the Web Part Package, and click 'OK'

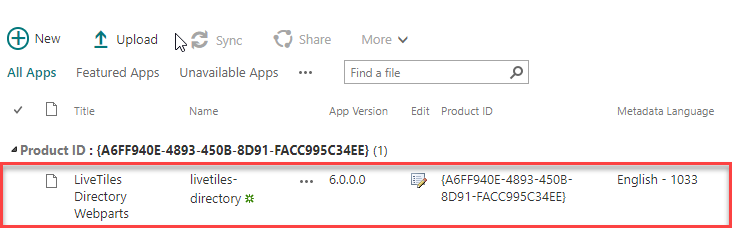

The Directory Profile Webpart should appear with a Product ID '{A6FF940E-4893-450B-8D91-FACC995C34EE}':

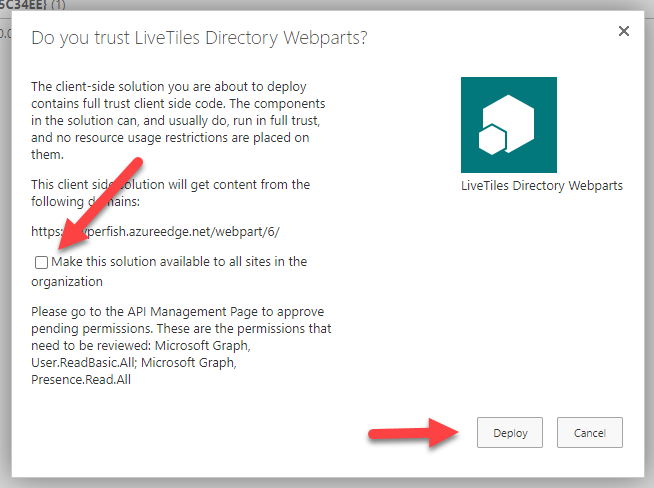

4   You will be asked to consent and trust the Directory Profile Webpart.

You must select "Make this solution available to all sites in the organization" if you want to allow the WebPart to be added to pages in any site in SharePoint.

Click 'Deploy' to finish adding the app:

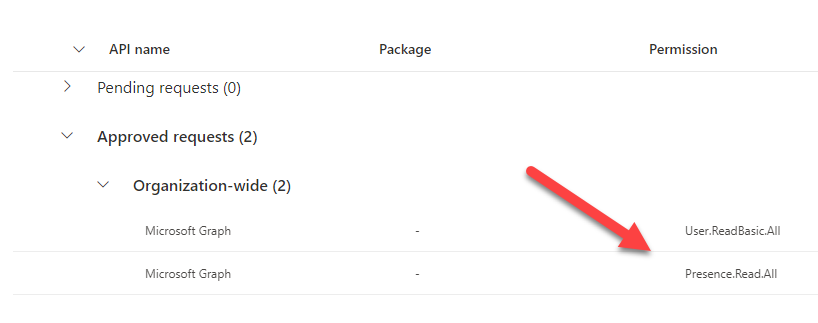

5   If the current tenant has not deployed one of the newer types of SPFx web parts, there is a need to approve the deployment request.  To complete this, navigate to the SharePoint Admin Center. From the modern experience, find the API Management menu on the left hand side menu. On this page, the pending approval will show up. If no approvals are pending then this step is complete (it can take a few seconds once on the page for the request to load). If there is a pending approval, select the pending item and approve it.

 ***If deploying web parts to Microsoft Teams there is some additional configuration that needs to be completed, please navigate to the additional configuration steps listed at the bottom of this article before trying to implement web parts into Teams.

Adding a Directory Web Part to a Site Page

Navigate to the target SharePoint site page, enter 'Edit' mode to add a web part :

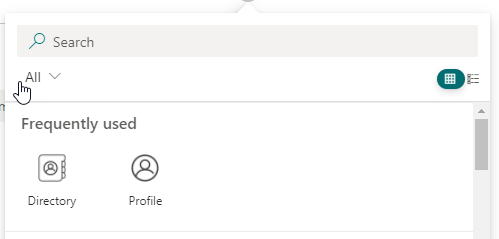

You should see the Live directory and Profile web parts in the menu.



Select the WebPart you'd like to add and publish the changes:

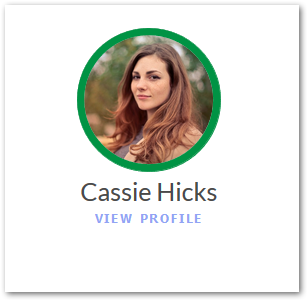

The Profile Web Part

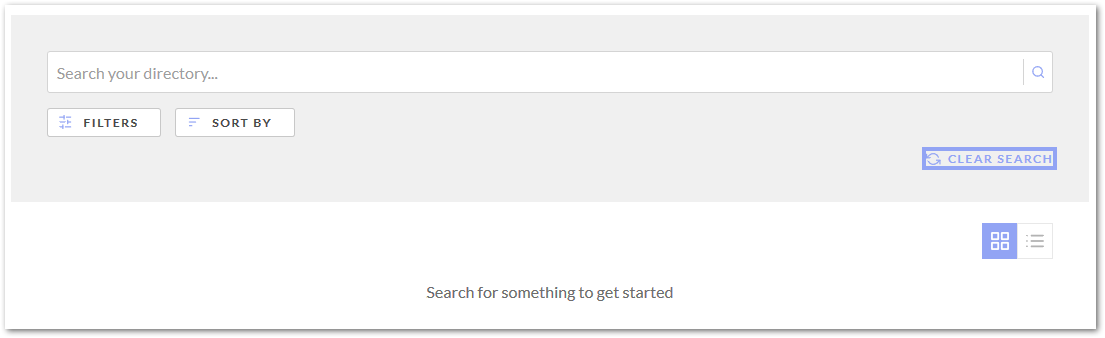

The Live Directory Web Part

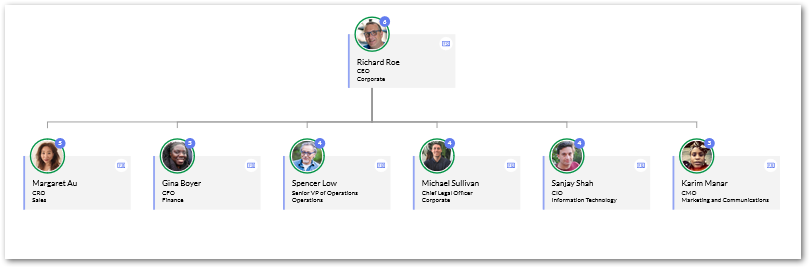

The Organizational Chart Web Part

Microsoft Teams Additional Configuration

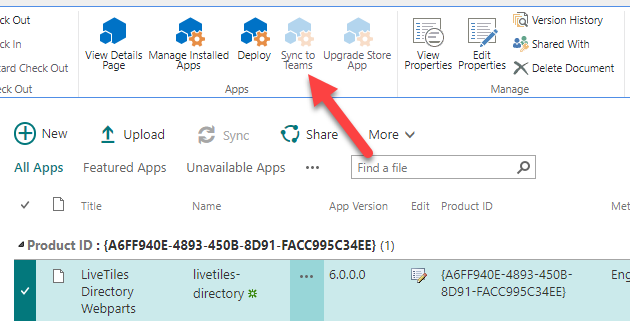

Select the Web Part Package. Select the File tab on the top of the page. Finally, select 'Sync to Teams'

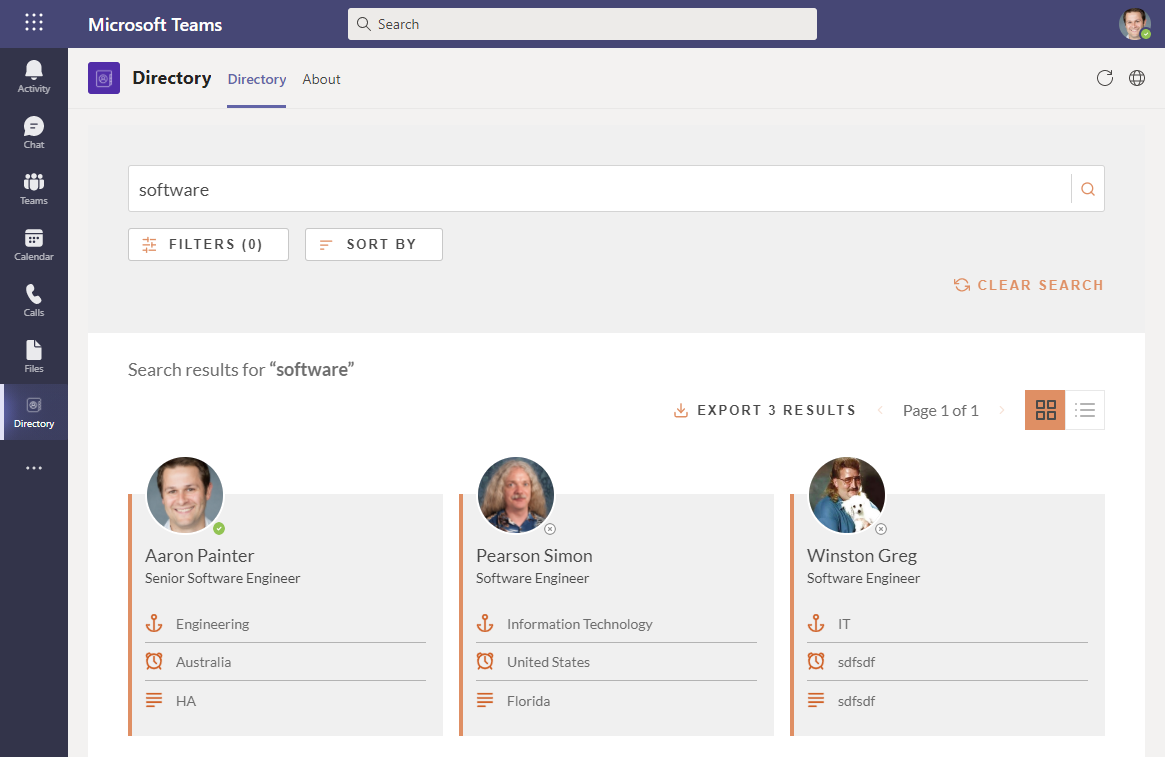

Once complete, navigate to Teams in either a browser or the desktop version.  Select a new Tab within a Team and the LiveTiles Directory Web Parts should be present. (Note it is still referred to as Hyperfish in some instances)

Web Part Localization

Directory currently offers the Profile, Live Directory and Organizational Chart web parts in English, Dutch, German and French. To utilize a language other than English, the latest app package will need to be installed (5.0.0.0). To utilize these additional languages, the desired language will need to be added as a preferred language to the site the web part will be hosted on. Lastly, the user accessing the page will need to have the same language set as their preferred language within their SharePoint profile.



If you have any trouble installing or adding the LiveTiles Directory SharePoint Web Part package, please contact support@livetiles.nyc
